KQE HVLS Fans Overview
HVLS Industrial Fans for Economical, Powerful Cooling
Leave behind extreme temperatures and stagnant air with KQE Series HVLS Industrial Fans. Engineered for affordability and efficiency, these fans feature 6 aluminum airfoil blades for superior airflow and whisper-quiet operation. Designed for wide coverage, they enhance HVAC efficiency and ensure workplace comfort in demanding industrial environments. Built tough to withstand heavy-duty operations, the KQE Series is your go-to entry-level HVLS fan solution.
ORDER ONLINE
KQE Series HVLS Industrial Fans
KQE Series HVLS Fans – Fast & Secure Online Ordering
The HVLS Fan – Engineered to Move Massive Amounts of Air, Plain and Simple.
KQE Series – Built on Simple Features to Craft a Tough & Reliable Fan
-
Available Sizes - Diameter:
-
7.3 m (24 ft), 6.1 m (20 ft), 5.5 m (18 ft), 4.9m (16 ft), 3.7m (12 ft).
-
-
Industrial-Grade Motor & Gearbox:
-
Designed for efficiency and longevity with inline, helical-cut gears and precision-machined components. Features durable ball bearings, vented lubrication for life, and double lip seals for maximum reliability.
-
-
Advanced Airfoil System:
-
6 - Aluminum airfoil blades with winglets and safety restraints. Engineered for maximum efficiency, the aerodynamic design prevents vortex formation, while cuffed winglets minimize wind noise and enhance performance.
-
-
Safety & Simplicity Standard:
-
Wall-mounted control box with an on/off switch and variable speed controller for effortless operation. A power-on shutdown relay seamlessly integrates with fire control panels and building automation systems, ensuring compliance and enhanced safety.
-
The Brain – Advanced VFD Control for Energy Optimization and Building Automation.
Precise Fan Control for Higher Comfort Levels & Energy Savings
The KQE Series HVLS Industrial Fans feature an advanced VFD Controller, allowing precise fan control for improved HVAC efficiency. With variable speed operation, fire suppression system integration, and a power-on shutdown relay, these energy-efficient HVLS industrial fans enhance airflow, safety, and building automation capabilities for industrial environments.
The Muscle – Industrial-Grade Motor Engineered for Maximum Power & Endurance.
Powerful Performance – A Motor Built to Last in the Toughest Industrial Environments
The KQE Series HVLS Industrial Fans feature an industrial-grade motor with helical-cut gears and precision-machined components for superior efficiency and durability. Designed for tough industrial environments, these energy-efficient HVLS industrial fans include vented, permanently lubricated bearings, double lip seals, and a sealed gearbox for smooth, reliable operation.
TECHNICAL SPECIFICATIONS
KQE Series HVLS Industrial Fans
The HVLS Fan – Engineered to Move Massive Amounts of Air in Tough Industrial Environments.
Size & Coverage
Fan Diameter & Coverage Diameter:
-
Size: 7.3 m (24 ft)
-
Cooling: 50.3 m (165 ft)
-
Destratification: 73.2 m (240 ft)
-
-
Size: 6.1 m (20 ft)
-
Cooling: 39.6 m (130 ft)
-
Destratification: 61.0 m (200 ft)
-
-
Size: 5.5 m (18 ft)
-
Cooling: 36.6 m (120 ft)
-
Destratification: 54.8 m (180 ft)
-
-

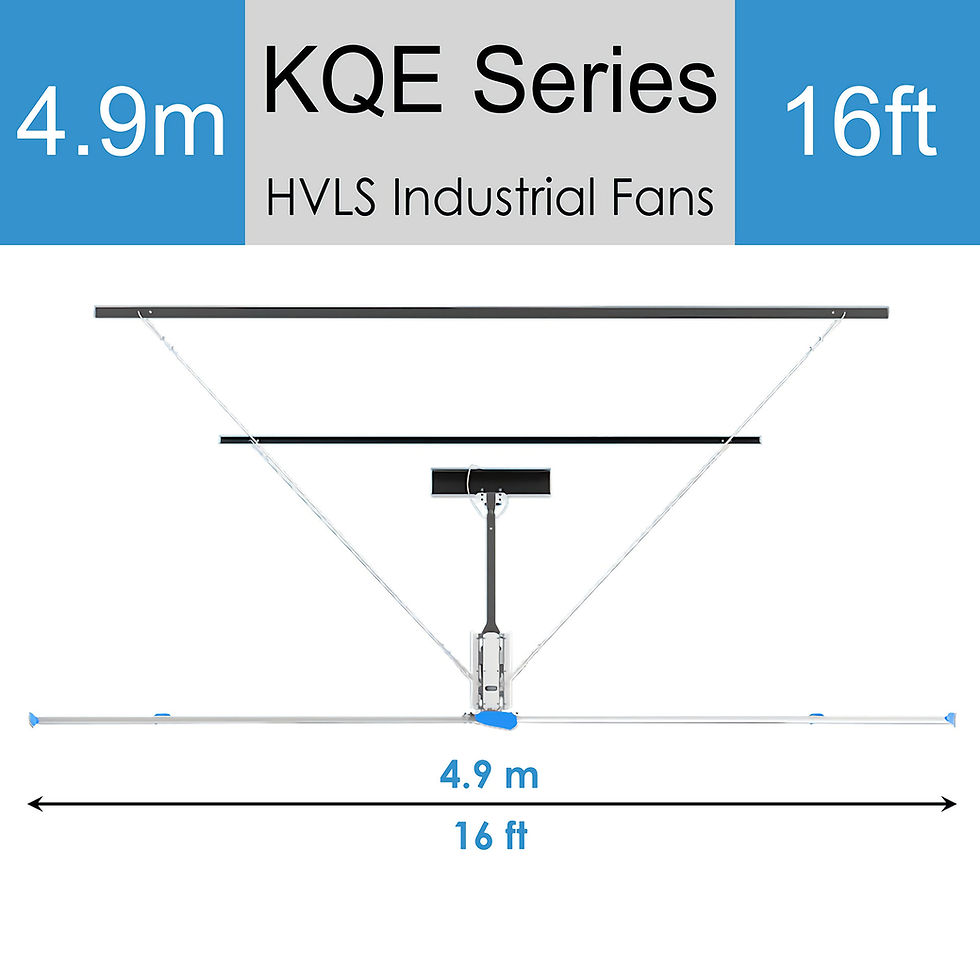

Size: 4.9 m (16 ft)
-
Cooling: 30.5 m (100 ft)
-
Destratification: 48.8 m (160 ft)
-
-
Size: 3.7 m (12 ft)
-
Cooling: 19.8 m (65 ft)
-
Destratification: 36.6 m (120 ft)
-
Fan Size & Motor Power
Horsepower, Speed Range & Noise Levels:
-
Size: 7.3 m (24 ft)
-
1.5 kW (2.0 HP) | 20-53 RPM | 51 dBA
-
-
Size: 6.1 m (20 ft)
-
1.5 kW (2.0 HP) | 20-53 RPM | 52 dBA
-
-
Size: 5.5 m (18 ft)
-
1.5 kW (2.0 HP) | 20-64 RPM | 53 dBA
-
-
Size: 4.9 m (16 ft)
-
1.1 kW (1.5 HP) | 20-64 RPM | 53 dBA
-
-
Size: 3.7 m (12 ft)
-
1.1 kW (1.5 HP) | 20-75 RPM | 55 dBA
-
Fan Size & Power Requirements
Input Voltage & Breaker Ratings
-
Applicable for All Fan Sizes:
-
1 Ø 200–240 V ±10%, 50/60 Hz @ 20 A
-
3 Ø 200–240 V ±10%, 50/60 Hz @ 15 A
-
3 Ø 380–480 V ±10%, 50/60 Hz @ 10 A
-
Fan Size & Environmental Conditions
Weight, Operating Temperature & Humidity Limits
-
Size & Weight
-
Size 7.3 m (24 ft): 128 kg (282 lb)
-
Size 6.1 m (20 ft): 125 kg (276 lb)
-
Size 5.5 m (18 ft): 116 kg (256 lb)
-
Size 4.9 m (16 ft): 111 kg (245 lb)
-
Size 3.7 m (12 ft): 102 kg (225 lb)
-
-
Applicable for All Fan Sizes
-
Min Operating Temp: -15° C (5° F)
-
Max Operating Temp: 55° C (131° F)
-
Max Humidity: Below 95% RH
-
FIAC & FIOP
Field-Installed Accessories (FIAC)
-
Extension Tube – Length Options:
-
1500 mm (Standard – Included with Fan)
-
300 mm (Optional)
-
500 mm (Optional)
-
Factory-Installed Options (FIOP)
-
Reverse Button – Destratification Mode (Optional)
Compliance & Warranty
Certifications & Compliance Marks
-
Applicable for All Fan Sizes:
-
CE Certified
-
ISO Certified
-
SGS Certified
-
TÜV Certified
-
UL Certified (US & Canada) – Available on Request
-
Warranty Coverage
-
Applicable for All Fan Sizes:
-
Mechanical Components: 6 Years
-
Electrical Components: 3 Years
-
Labor: 1 Year
-
ORDERING & LOGISTICS
KQE Series HVLS Industrial Fans
KQE Series HVLS Fans – Ordering, Shipping & Logistics Made Simple.
Ordering Numbers
Manufacturer Part Numbers (MPN)
Available Configurations for Size: 7.3 m (24 ft):
-
1 Ø 200–240 V, 50/60 Hz (MPN: KQ7E0007)
-
3 Ø 200–240 V, 50/60 Hz (MPN: KQ7E0014)
-
3 Ø 380–480 V, 50/60 Hz (MPN: KQ7E0022)
Available Configurations for Size: 6.1 m (20 ft):
-
1 Ø 200–240 V, 50/60 Hz (MPN: KQ6E0007)
-
3 Ø 200–240 V, 50/60 Hz (MPN: KQ6E0014)
-
3 Ø 380–480 V, 50/60 Hz (MPN: KQ6E0022)
Available Configurations for Size: 5.5 m (18 ft):
-
1 Ø 200–240 V, 50/60 Hz (MPN: KQ5E0007)
-
3 Ø 200–240 V, 50/60 Hz (MPN: KQ5E0014)
-
3 Ø 380–480 V, 50/60 Hz (MPN: KQ5E0022)
Available Configurations for Size: 4.9 m (16 ft):
-
1 Ø 200–240 V, 50/60 Hz (MPN: KQ4E0007)
-
3 Ø 200–240 V, 50/60 Hz (MPN: KQ4E0014)
-
3 Ø 380–480 V, 50/60 Hz (MPN: KQ4E0022)
Available Configurations for Size: 3.7 m (12 ft):
-
1 Ø 200–240 V, 50/60 Hz (MPN: KQ3E0007)
-
3 Ø 200–240 V, 50/60 Hz (MPN: KQ3E0014)
-
3 Ø 380–480 V, 50/60 Hz (MPN: KQ3E0022)
Shipping & Handling
Dimensions, Weight & Container
Shipping Details for Size 7.3 m (24 ft):
-
Motor Dimensions: 0.95 x 0.84 x 0.55 m (0.44 cu.m)
- Blade Dimensions: 3.65 x 0.42 x 0.42 m (0.64 cu.m)
- Total Shipping Volume: 1.08 cu.m
- Gross Weight (G.W.): 227 kg
-
Net Weight (N.W.): 202 kg
-
Container Capacity:
-
20-ft Container: 24 HVLS Fans
-
40-ft Container: 50 HVLS Fans
-
40-ft HQ Container: 60 HVLS Fans
-
Shipping Details for Size 6.1 m (20 ft):
-
Motor Dimensions: 0.95 x 0.84 x 0.55 m (0.44 cu.m)
-
Blade Dimensions: 3.15 x 0.42 x 0.42 m (0.56 cu.m)
-
Total Shipping Volume: 1.00 cu.m
-
Gross Weight (G.W.): 219 kg
-
Net Weight (N.W.): 194 kg
-
Container Capacity:
-
20-ft Container: 26 HVLS Fans
-
40-ft Container: 55HVLS Fans
-
40-ft HQ Container: 65 HVLS Fans
-
Shipping Details for Size 5.5 m (18 ft):
-
Motor Dimensions: 0.95 x 0.84 x 0.55 m (0.44 cu.m)
-
Blade Dimensions: 3.00 x 0.42 x 0.42 m (0.53 cu.m)
-
Total Shipping Volume: 0.97 cu.m
-
Gross Weight (G.W.): 211 kg
-
Net Weight (N.W.): 186 kg
-
Container Capacity:
-
20-ft Container: 26 HVLS Fans
-
40-ft Container: 56 HVLS Fans
-
40-ft HQ Container: 67 HVLS Fans
-
Shipping Details for Size 4.9 m (16 ft):
-
Motor Dimensions: 0.95 x 0.84 x 0.55 m (0.44 cu.m)
-
Blade Dimensions: 2.50 x 0.42 x 0.42 m (0.44 cu.m)
-
Total Shipping Volume: 0.88 cu.m
-
Gross Weight (G.W.): 203 kg
-
Net Weight (N.W.): 178 kg
-
Container Capacity:
-
20-ft Container: 29 HVLS Fans
-
40-ft Container: 62 HVLS Fans
-
40-ft HQ Container: 73 HVLS Fans
-
Shipping Details for Size 3.7 m (12 ft):
-
Motor Dimensions: 0.95 x 0.84 x 0.55 m (0.44 cu.m)
-
Blade Dimensions: 2.00 x 0.42 x 0.42 m (0.35 cu.m)
-
Total Shipping Volume: 0.79 cu.m
-
Gross Weight (G.W.): 195 kg
-
Net Weight (N.W.): 170 kg
-
Container Capacity:
-
20-ft Container: 32 HVLS Fans
-
40-ft Container: 69 HVLS Fans
-
40-ft HQ Container: 82 HVLS Fans
-
Product Classification
HS Code, Country of Origin & Brand
Applicable for All Fan Sizes:
-
HS Code: 8414.59.90
-
Country of Origin: CN, China
-
Brand: KQE Series
